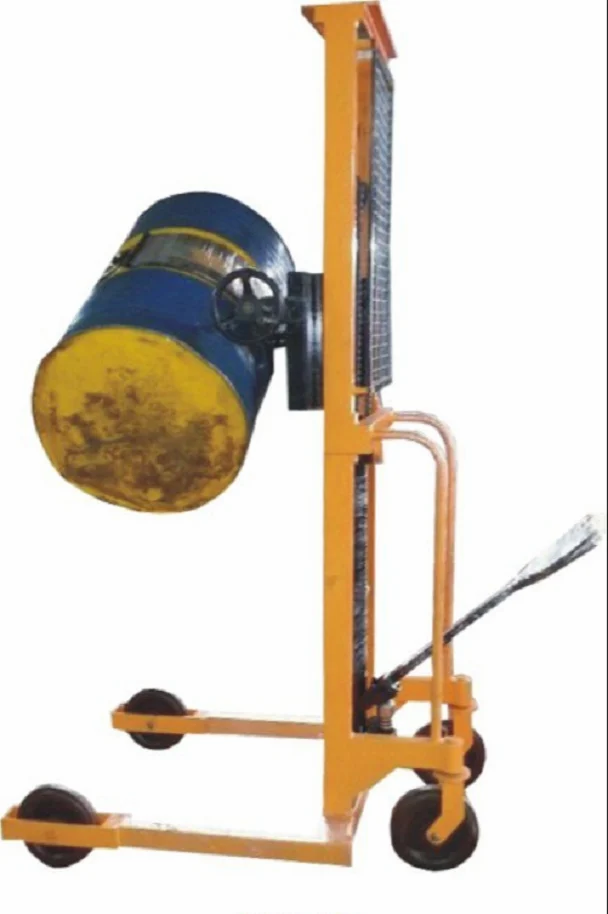

Lifting of drums is carried out through a manually operated hydraulic system.

A gear box is provided to rotate the drum smoothly. Once lifted hydraulically, the drum can be rotated up to 180° by simply turning the handle.
Suitable for loading and unloading drums from trucks.
Allows drums to be stacked horizontally, one over the other.
Enables 180° tilting for complete pouring of liquids down to the last drop.
Capable of carrying drums over long distances with ease.
A true one-man operation—no need for direct hand contact with the drum.
Compatible with both steel and plastic drums.
An ideal solution for fast, safe, and efficient drum handling in warehouses and industrial plants.

Product Code		SB – 31	SB – 31	SB – 31
Rated Capacity	kg	500	500	500
Load Center	mm	600	600	600
Max. Fork Height	mm	1600	2500	3000
Minimum height	mm	500	500	500
Overall Length	mm	1500	1500	1500
Overall Height	mm	2050	1800	2050
NOTE: All Drum Jockey can be customized as per requirements
