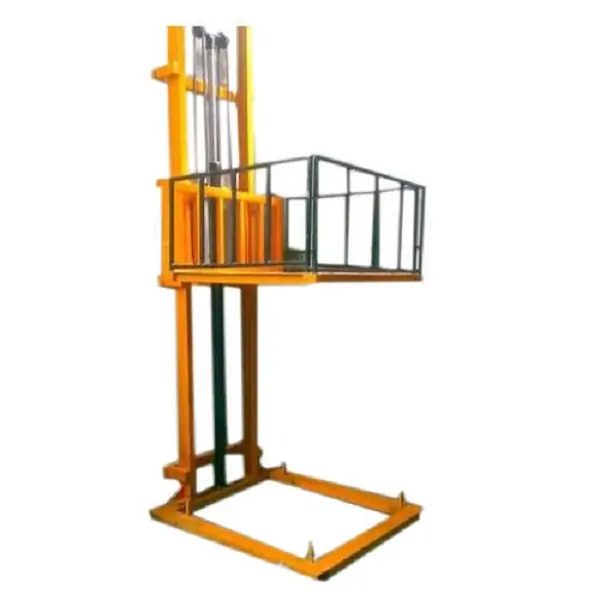

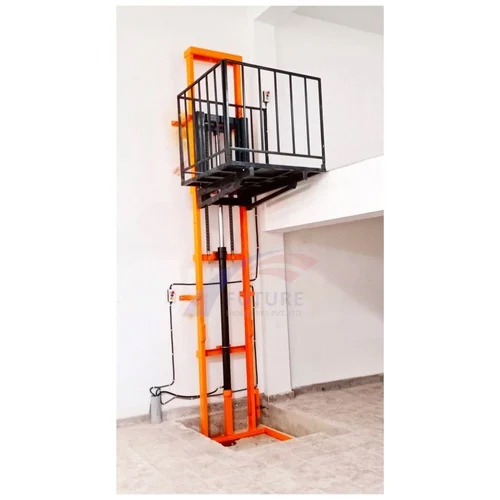

Hydraulic Goods Lift
The PE-82 Hydraulic Goods Lift is a robust and efficient solution designed for smooth vertical movement of materials between floors. Ideal for warehouses, factories, and industrial buildings, this self-standing lift does not require a shaft or major civil work, making installation quick and hassle-free. With a lifting range of up to 12 meters and multiple capacity options, it ensures reliable performance for heavy-duty material handling. Equipped with an advanced electro-hydraulic power pack, overload protection, and limit switch controls, the PE-82 prioritizes safety, durability, and low maintenance. Its compact design occupies minimal shop-floor space while delivering maximum lifting efficiency.
Key Features
- Available capacities: 500 kg, 1000 kg, and 1500 kg
- Lifting height range: 3000 mm to 12,000 mm (12 meters)
- Designed for material shifting between ground, first, and second floors
- Self-standing structure; no duct or major civil work required
- Fully automatic electro-hydraulic power pack for smooth up/down movement
- Adjustable overload protection valve ensures safety against excess load
- Ground-mounted power drive unit for easy maintenance
- Up and down motion controlled by limit switches and mechanical stoppers
- Compact design requiring minimal shop-floor space
- Equipped with two lifting chains and two standby ropes as standard safety features
| MODEL | SB - 28 |
| Load Carrying Capacity (kg) | 500 / 1000 / 1500 Kgs |
| Max. Platform Height (mm) | 3000 mm up to 12000 mm |
| Min. Platform Height (mm) | 150 |
| Platform Length L (mm) | 800 up to 1500 mm |
| Platform Width W (mm) | 800 up to 1500 mm |
| Overall Width W (mm) | 1600 mm |
| Safety Railing Height (mm) | 600 to 1200 mm |
