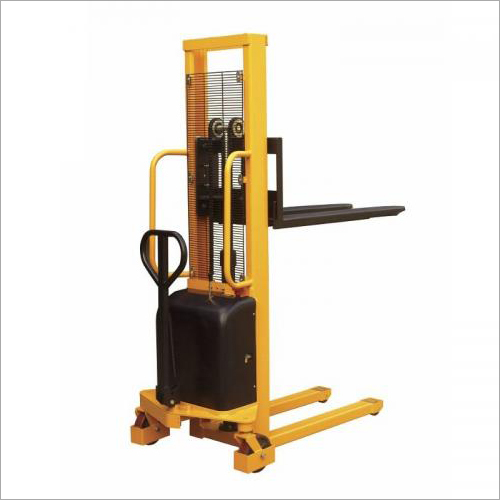

Fully Electric Stacker
Safety & Productivity
- AC Motor System: Eliminates the need for carbon brush replacement, ensuring longer motor life and reduced maintenance.
- Multi-Function Display: Shows battery power, fault codes, hour meter, and speed level for easy monitoring and safe operation.
- Low-Noise Operation: Equipped with a damping cushion to minimise noise during use.
- Emergency Reversing Device: Built into the handle to enhance operator safety and prevent accidental collisions.
- Auto Deceleration: Automatically reduces speed for safer handling in tight or busy work environments.
- Emergency Power Disconnect: Allows immediate shutdown during unsafe situations or emergencies.
- Stable Operation: Low centre of gravity provides excellent stability during lifting and movement.
- Full Free Lifting: Suitable for low-height working areas—3-meter lifting height can pass through 2-meter doorways easily.
Serviceability
- Low Battery Protection: Extends overall battery life by preventing deep discharge.
- Simplified Electronics: Concentrated design of electronic components makes the circuit easy to access, assemble, test, and maintain.
- Hall Sensor Technology: Reduces wear on components, increasing reliability and extending the service life of the machine.
| Model No. | SB - 21 | SB - 21 | SB - 21 | SB - 21 | |
| Drive: electric | Electric | Electric | Electric | Electric | |
| Type of operation :hand , pedestrian, standing, seated, order-picker | Pedestrian | Pedestrian | Pedestrian | Pedestrian | |
| Rated loading capacity Q | Q(kg) | 1250 | 1500 | 1600 | 1500 |
| Load centre distance C | C (mm) | 600 | 600 | 600 | 600 |
| Load distance ,centre of drive axle to fork | x(mm) | 796 | 677 | 711 | 765 |
| Wheelbase | y(mm) | 1278 | 1168 | 1310 | 1514 |
| Weights | |||||
| Service weight | kg | 930 | 1120 | 1365 | 1598 |
| Axle loading, laden front/rear | kg | 1040 / 1140 | 1245 / 1375 | 1410 / 1555 | 1375 / 1723 |
| Axle loading,unladen front/rear | kg | 685 / 245 | 826 / 295 | 1010 / 355 | 975 / 623 |
| Wheels, Chassis | |||||
| Tyres:solid rubber, uperelastic, pneumatic, polyurethane | Polyu-rethane | Polyu-rethane | Polyu-rethane | Polyu-rethane | |
| Tyre size, front | mm | 252 x 89 | 250 x 78 | 250 x 78 | 230 x 78 |
| Tyre size, rear | mm | 80 x 70 | 80 x 70 | 80 x 70 | 80 x 70 |
| Additional wheels(dimensions) | mm | 150 x 54 | 150 x 54 | 150 x 54 | 124 x 60 |
| Wheels, number front/rear (x=driven wheels) | 1x +2/ 4 | 1x +2/ 4 | 1x +2/ 4 | 1x +2/ 4 | |
| Track width,front | b10 (mm) | 650 | 685 | 880 | 780 |
| Track width,rear | b11(mm) | 390 / 505 | 390 / 515 | 390 / 515 | 570 |
| Basic Dimensions | |||||
| Lowered mast height | h1(mm) | 2296 | 1695 | 2098 | 2730 |
| Free lift | h2(mm) | 158 | --- | --- | 2100 |
| Lift height | h3(mm) | 3520 | 3314 | 4514 | 5915 |
| Extended mast height | h4(mm) | 3976 | 3904 | 5100 | 6630 |
| Height of tiller in drive position min./max. | h14(mm) | 940 / 1320 | 985 / 1365 | 965 / 1365 | 864 / 1287 |
| Lowered height | h13(mm) | 81 | 86 | 86 | 85 |
| Overall length | l1(mm) | 1908 | 1925 | 1915 | 2170 |
| Length to face of forks | l2(mm) | 758 | 775 | 765 | 1020 |
| Overall width | b1(mm) | 890 | 805 | 1050 | 1040 |
| Fork dimension s/e/l | mm | 60/180/1150 | 60/180/1150 | 60/180/1150 | 60/180/1150 |
| Width over forks | b5(mm) | 570 | 570 / 695 | 570 / 695 | 750 |
| Ground clearance, centre of wheelbase | m2(mm) | 26 | 50 | 50 | 25 |
| Aisle width for pallets 800X1200 Crossways | Ast(mm) | 2224 | 2147 | 2271 | 2644 |
| Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2158 | 2123 | 2236 | 2590 |
| Turning radius | Wa(mm) | 1590 | 1465 | 1605 | 1800 |
| Performance | |||||
| Travel speed, laden/unladen | km/h | 5.2 / 5.5 | 5.1 / 5.4 | 5.1 / 5.5 | 5 / 5.5 |
| Lift speed, laden/unladen | mm/s | 110 / 170 | 105 / 170 | 113 / 160 | 106 / 170 |
| Lowering speed, laden/unladen | mm/s | 120 / 130 | 100 / 95 | 100 / 95 | 96 / 80 |
| Max.gradient performance, laden/unladen | % | 6/12 | 6/12 | 6/12 | 6/12 |
| Service brake | Electro-magnetic | Electro-magnetic | Electro-magnetic | Electro-magnetic | |
| E-Motor | |||||
| Drive motor rating s2 60min | kW | 1.2 | 1.2 | 1.2 | 1.5 |
| Lift motor rating at s3 15% | kW | 2.2 | 3 | 3 | 3 |
| Battery acc. To DIN, no | 3PZS | 3PZS | 4PZS | 5VBS | |
| Battery voltage, nominal capacity | 24/210 | 24/210 | 24/280 | 24/350 |
