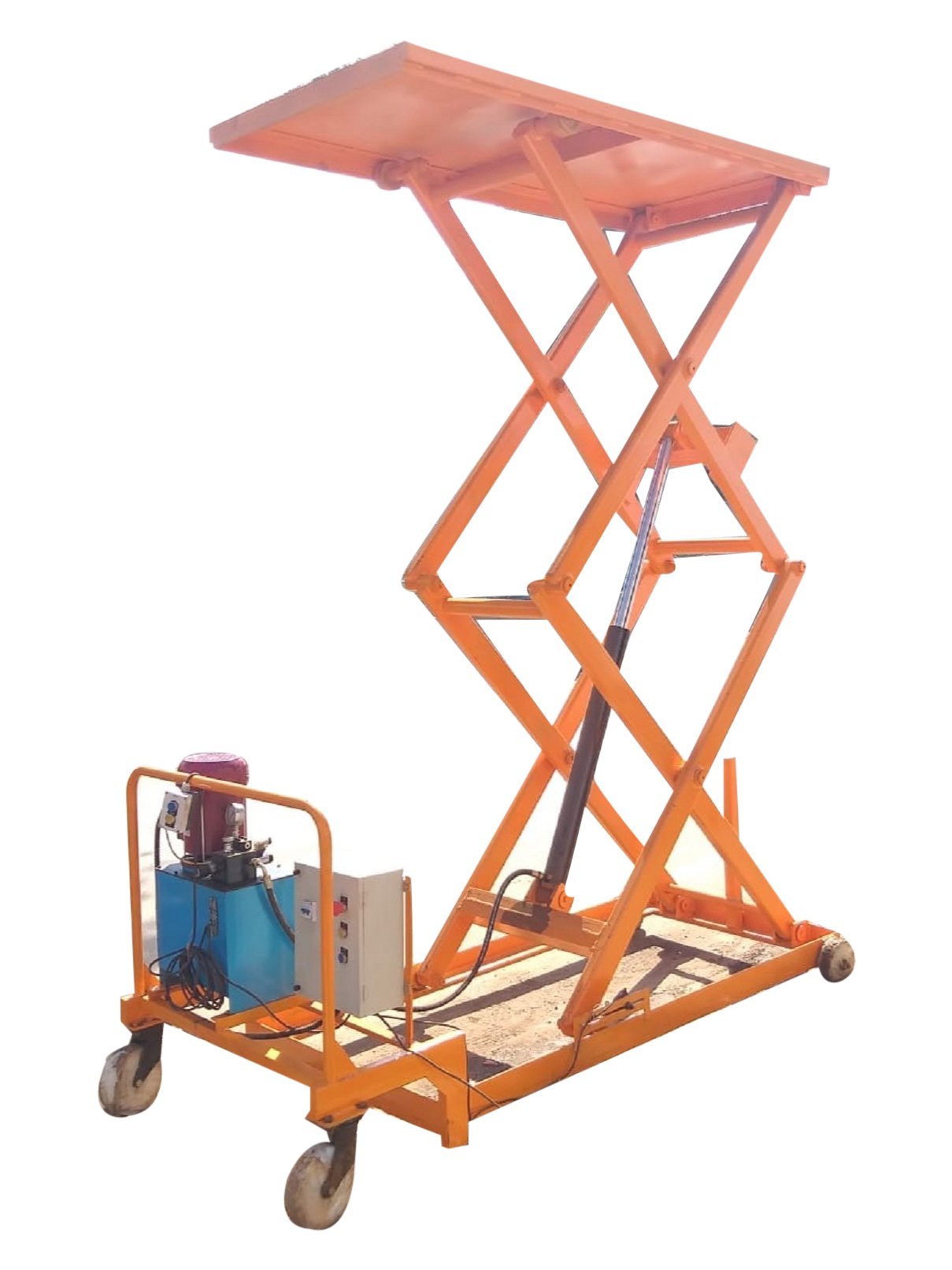

Electric Lift Table With Wheels
The PE-78 Electric Lift Table With Wheels is a highly versatile material handling solution designed for smooth, efficient, and mobile lifting operations. Built with a robust hydraulic system, it delivers reliable performance for a wide range of industrial applications, offering lifting capacities from 500 kg to 15,000 kg. With table lengths up to 5000 mm and multi-scissor mechanisms, it can achieve impressive lifting heights between 1200 mm and 6000 mm. Featuring a motorized hydraulic pump and flexible mobility on wheels, this lift table allows operators to effortlessly lift, lower, move, and transfer heavy loads between floors, vehicles, and machines. Its combination of power, portability, and precision makes it ideal for demanding material handling environments.
Key Features
- Powered hydraulic lifting platform for efficient vertical movement
- Designed to provide high quality at an economical price
- Lifting capacity range: 500 kg to 15,000 kg
- Table lengths available up to 5000 mm
- Multiple scissor mechanisms enable lifting from 1200 mm to 6000 mm
- Hydraulic cylinder generates lifting force through scissor arms
- Operable via motorized pump unit or hand pump
- Mobility on wheels for easy movement and positioning
- Allows lifting, lowering, moving, and transferring heavy loads
- Suitable for material transfer between floors, vehicles, and machinery
- Fast, smooth, and reliable operational performance
Applications
- Lifting heavy materials
- Transporting heavy dies or industrial components
Table Specification
| Platform Size | 1000 mm x 800 mm up to 5000 mm x 2500 mm |
| Min. Close Height | 600 mm up to 1200 mm |
| Max. Lifted Height | 1200 mm up to 6000 mm |
| Clear Lift Available | 600 mm up to 4800 mm |
| Load Capacity | 500 to 15000 kgs. |
